Product Introduction

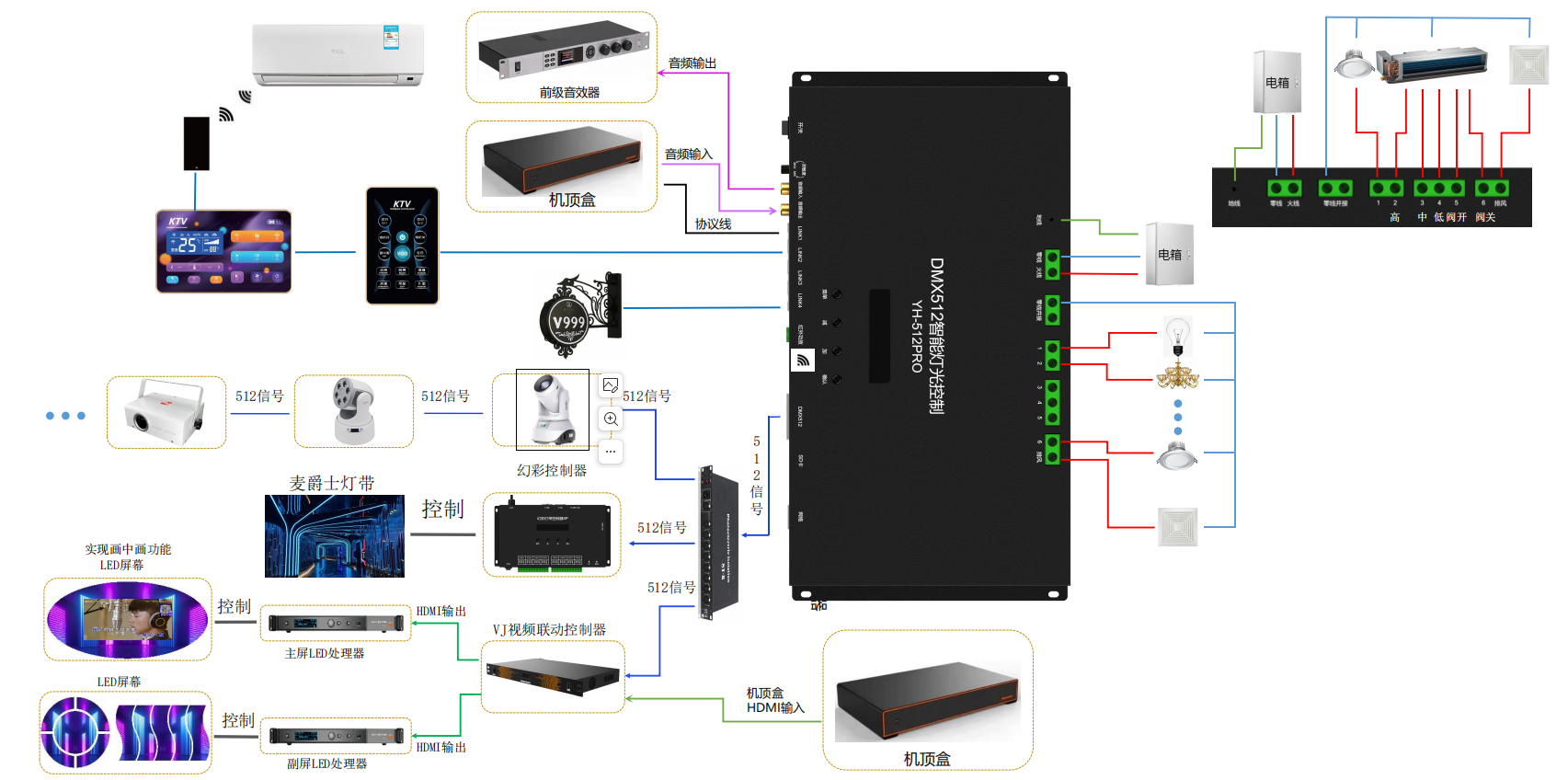

The YH-512PRO smart controller is a multifunctional 512-channel smart controller. The YH-1024SE smart controller is an upgraded version of the 512-channel controller to a 1024-channel controller, and the YH-1024PRO smart controller integrates multiple functions into a 1024-channel controller with video linkage. It serves as the core component of the comprehensive control system for party KTV, party rooms, and small bars, supporting light material recording for consoles like Tiger and MA, while also supporting automatic switching of lighting scenes, audio detection, and other functions, making entertainment lighting smarter and cooler.

Functions

◆ Light library management function: Can parse d4 and R20 light libraries, allowing for light testing, naming, and saving.
◆ Console effect recording: There are 32 lighting scenes and 32 audio scenes, with no limit on the number of steps per scene.
◆ Audio mixing function: The number of state changes for lighting effects can be configured according to the rhythm triggered by audio, easily achieving effects like running lights and chasing.
◆ Sound and light rhythm synchronization function: The rhythm of light changes varies with the rhythm triggered by audio, keeping pace together.
◆ Intelligent scene switching function: The controller can intelligently switch to the corresponding music scene based on different types of musical atmospheres, automating lighting scene control.
◆ Multi-scene combination function: Existing lighting scenes in the system can be combined in any way, supporting up to 32 scenes for a relay, making lighting scenes cooler.
