Video controller
Automatically select the corresponding scene mode through the DMX512 or 485 commands of the smart lighting controller, achieving a coordinated experience of music, video, and lighting for each mode, creating an overall experience of sound, light, and electricity. This can be widely applied in KTV rooms, party rooms, and bar lounges.
- Product Application: Automatically select the corresponding scene mode through the DMX512 or 485 commands of the smart lighting controller, achieving a coordinated experience of music, video, and lighting for each mode, creating an overall experience of sound, light, and electricity. This can be widely applied in KTV rooms, party rooms, and bar lounges.
- Product Description
-

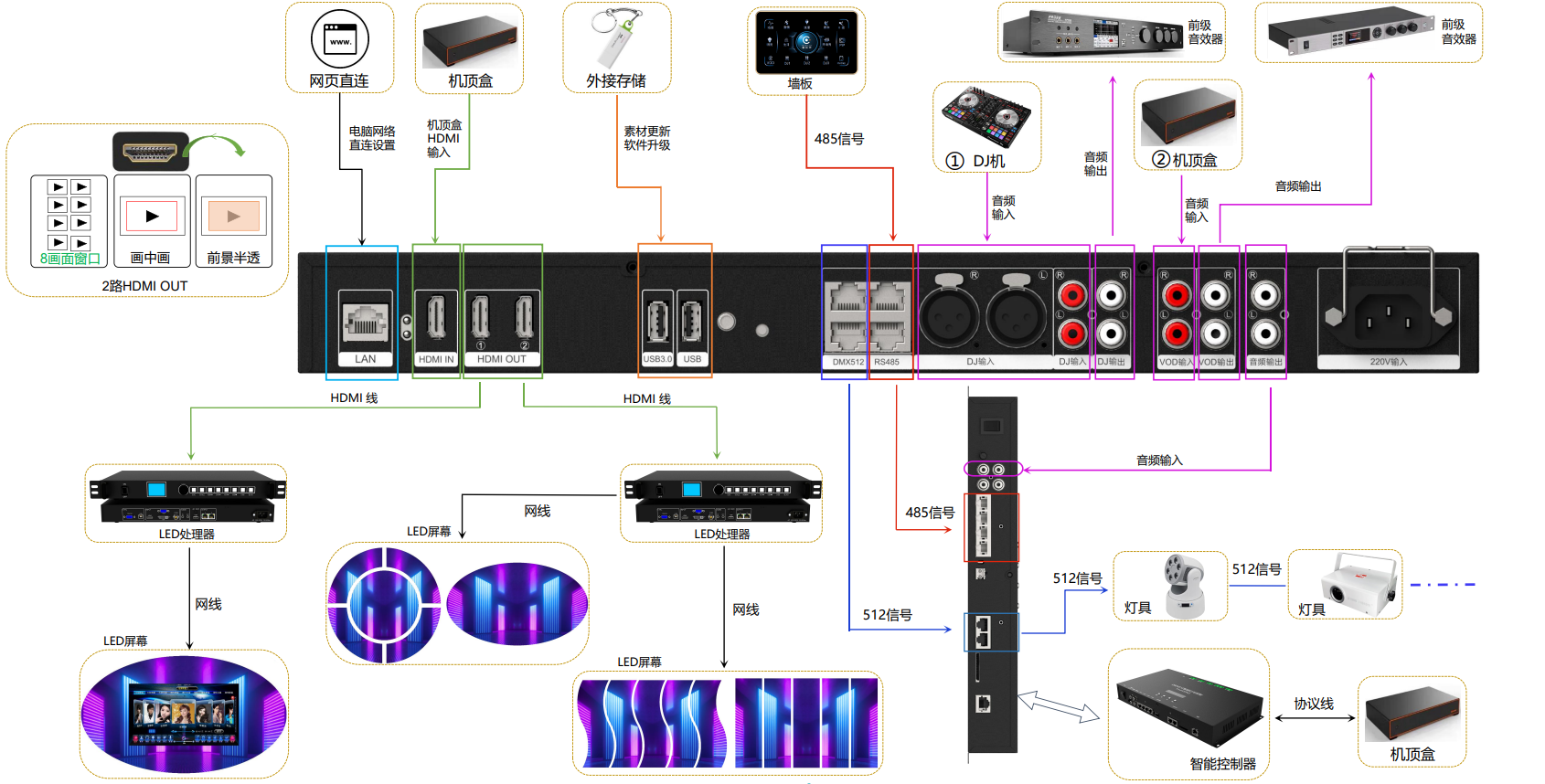

YH-V12PRO Product Application Topology Diagram/YH-V13PRO Product Application Topology Diagram
Product Features
● 2 HDMI OUT outputs, maximum resolution 1920*1080P for each output
● Fusion function, 2 HDMI OUT fusion, maximum resolution 3840*1080P
● 1 HDMI input, can overlay materials to achieve [Picture in Picture] function

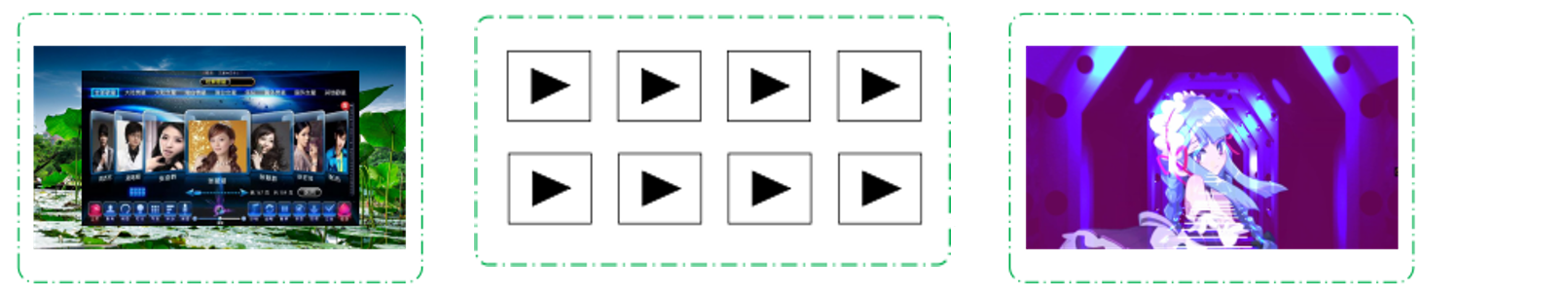

● HDMI OUT supports 8 windows
● Material semi-transparent overlay function

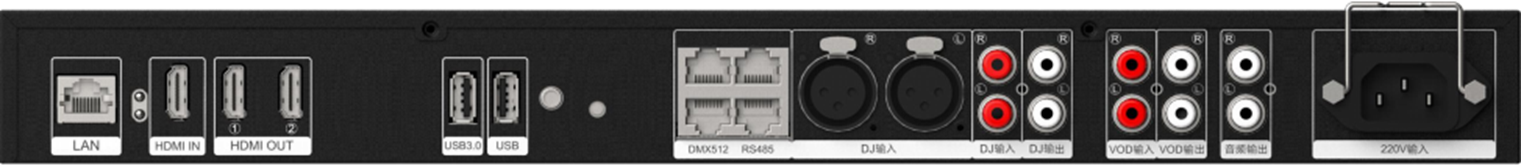

Interface Description
Interface Name
Interface Description
Power Supply
Input Power:AC 100-220V 50/60Hz
LAN
Gigabit Network
USB
One USB2.0 and one USB3.0 , can connect toUSB drive, mouse and other devices
HDMI IN
OneHDMIInput
HDMI OUT
TwoHDMIOutputs , each output resolution1920*1080P
DMX512 Interface
Can useDMX512 interface andKTVSmart Control Direct Connection , to achieve sound and light linkage.
RS485 Interface
Connect wall panels to switch between different screen scenes , using network cables , both ends of the crystal head are according to568B standard
Audio Input/Output
There are2 sets of input and output interfaces , sharing1RCAAudio Output
FirstSet: Audio Input: DJ audio XLR female/RCA; Audio Output: RCAFirstSecond Set: Audio Input:VODAudioRCA; Audio Output: RCA
SharedRCAOutput: Connect to the audio interface of smart control , real-time audio check , to achieve sound and lightlinkage

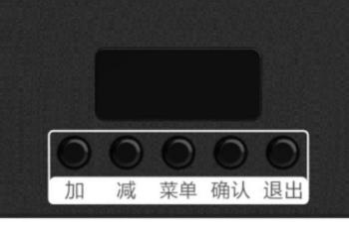

Menu Brief and Description
Name
Description
Add
Increase Value
Subtract
Decrease Value
Menu
Menu Selection Key
Confirm
After selecting function and setting value , press the confirm key to save
Exit
Exit Menu Selection
Display Panel Brief and Description
Display Breadboard
Description
0102
Under normal circumstances, the digital tube displays 4 digits, the first 2 digits (01):represent the directory, the last two digits(02):represent the material number under the directory
A001-A512
represent the address code of the controller
