Ionic-12S 12-inch subwoofer
The ionic-12S is part of the Ionic series of powered subwoofer enclosures. The Ionic enclosures are compact, modular and powerful, with the entire series including two subwoofers and two column models. The ionic-12S utilizes a 1 x 12-inch (3-inch voice coil) neodymium transducer, offering an ultra-compact subwoofer enclosure with 127dB SPL. The power module (Class D, with switching power supply) includes a Digital Signal Processor that provides different presets to cover a wide range of sound applications, complementing the column speakers. The Ionic-12S offers quick and easy setup for both fixed installation and portable applications

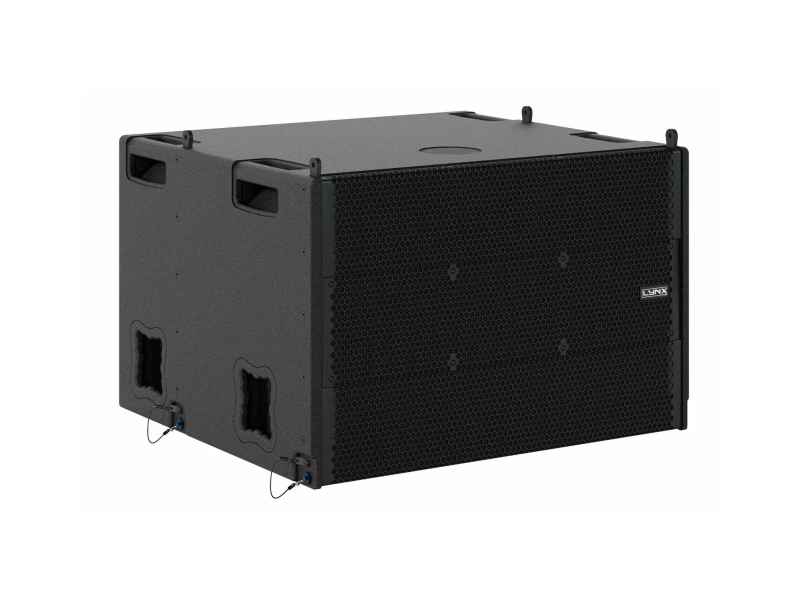

Ionic-18S 18-inch subwoofer
The Ionic-18S is part of the active subwoofer enclosure series from Ionic. The Ionic cabinet is compact, modular, and powerful, with the entire series including two subwoofer units and two column models. The Ionic-18S uses a 1 x 18-inch (3-inch voice coil) neodymium transducer, providing an ultra-compact subwoofer enclosure with 132dB SPL. The power module (Class D, with switching power supply) includes a digital signal processor that provides different presets to cover a wide range of sound applications, complementing column speakers. The Ionic-18S offers quick and easy setup for both fixed installations and portable applications.
Ionic-V24 Column Speaker
Ionic-V24 is a two-way passive column speaker in the Ionic series. This column features high-fidelity speech and, due to the waveguide, has greater vertical directivity. It is the newest and most powerful column system in the series and is ideal for indoor installations, conference rooms, chapels, and sound reinforcement. It can be powered by a subwoofer unit, which includes a digital signal processor, offering different presets to cover a wide range of sound applications. It can also be powered by an external amplifier.
Ionic-V28 Sound Column Speaker
Ionic-V28 is a two-way passive column speaker in the Ionic series. This column features high-fidelity speech and greater vertical directivity due to the waveguide. It is the newest and most powerful column system in the series, ideal for indoor installations, conference rooms, chapels, and sound reinforcement. It can be powered by a subwoofer unit, which includes a digital signal processor offering different presets to cover a wide range of sound applications. It can also be powered by an external amplifier.

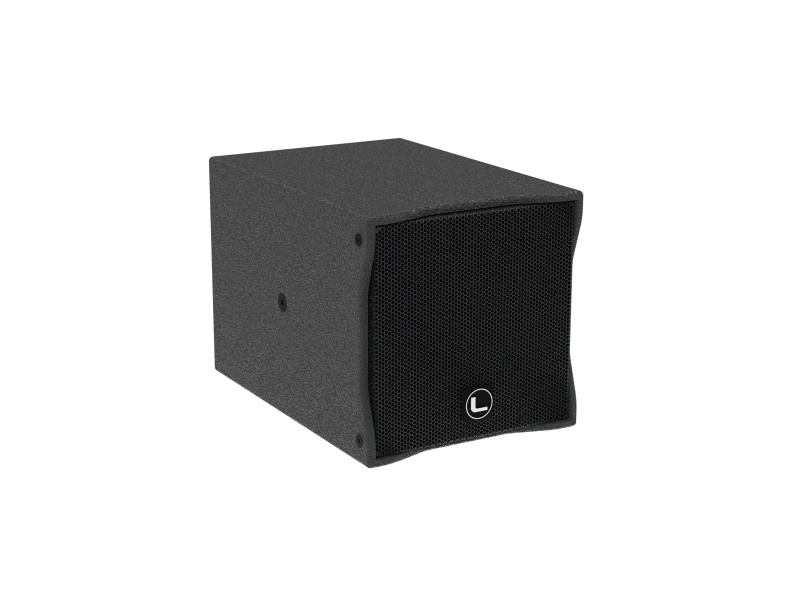

CPS-F10S 10-inch subwoofer
The CPS-F10S is an ultra-compact, lightweight passive subwoofer with a flat design that delivers high performance for background sound applications. Its low-profile design allows for seamless integration into various installation environments. The subwoofer features a 10-inch transducer with a rubber surround, enhancing durability and sound performance. It is constructed from 15mm high-quality birch plywood, ensuring robust strength and superior acoustic quality. The cabinet is coated with polyurea paint, providing extra protection against external factors while maintaining its aesthetic appeal. This versatile and durable design makes the CPS-F10S an excellent choice for professional audio installations such as concert halls, auditoriums, or commercial spaces where deep, clear low-frequency reproduction is needed without compromising space or aesthetics.

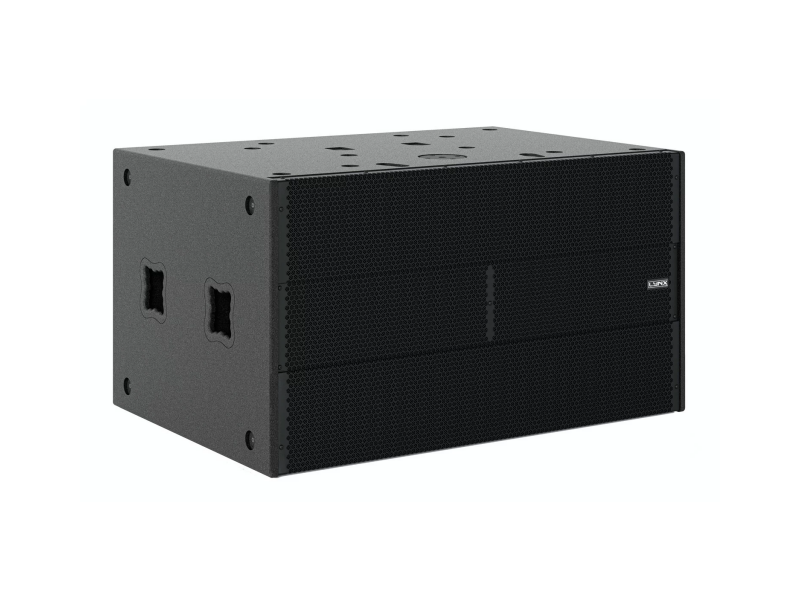

CPS18SP 18-inch Subwoofer
The CPS-18SP is a high-output, extremely powerful subwoofer designed for use with the coaxial CPS-214P point source module. The CPS-18SP utilizes a custom low-distortion 18-inch (4-inch QUATTRO input/output copper voice coil) speaker with FEA-optimized ceramic magnet circuit and proprietary Malt Cross technology cooling system. It features unique NCR (Neck Coupling Reinforcement) and is optimized for bandpass configurations. The specially designed ultra-rigid internal wood bracing reduces unwanted vibrations, eliminates any noise, reduces distortion and provides clear sound. Meanwhile, the bass port is designed with a flared mouth to eliminate any turbulence caused by sharp edges in the sound wave path. The enclosure is constructed from high-grade birch plywood and coated with polyurea for increased durability and weather protection.
CPS4 4-inch coaxial speaker
The CPS-4 is a passive coaxial loudspeaker using an ultra-compact enclosure, designed to deliver clear and balanced sound for short-throw applications. The CPS-4 is a two-way passive point-source system with a 4-inch coaxial transducer mounted in a sealed enclosure, producing 90º conical dispersion across the frequency range without side lobes. Its ultra-compact size and stylish design make it ideal for indoor installations, suitable for use as background sound reinforcement. Its low weight facilitates fixed installation, ease of transport, and suitability for portable applications. It can be powered by an external amplifier using ARK optimized preset boost.
CPS5 5-inch coaxial speaker
The CPS-5 is a two-way passive ventilation system in the CPS series, equipped with a 5-inch coaxial speaker (1.5-inch woofer and 1-inch tweeter), providing 70º conical coverage and 117dB SPL (300W program). It features a compact enclosure and is designed for short-throw applications. Due to its ultra-compact size and stylish design, the system is ideal for indoor installations and can be used for background sound reinforcement. The weight is minimized for easy fixed installation, convenient transportation, and suitability for portable applications. It can be powered by an external amplifier using ARK optimized preset booster.
