CLS-28P Dual 8-inch Array Speaker
CLS-212P Dual 12-inch Array Speaker

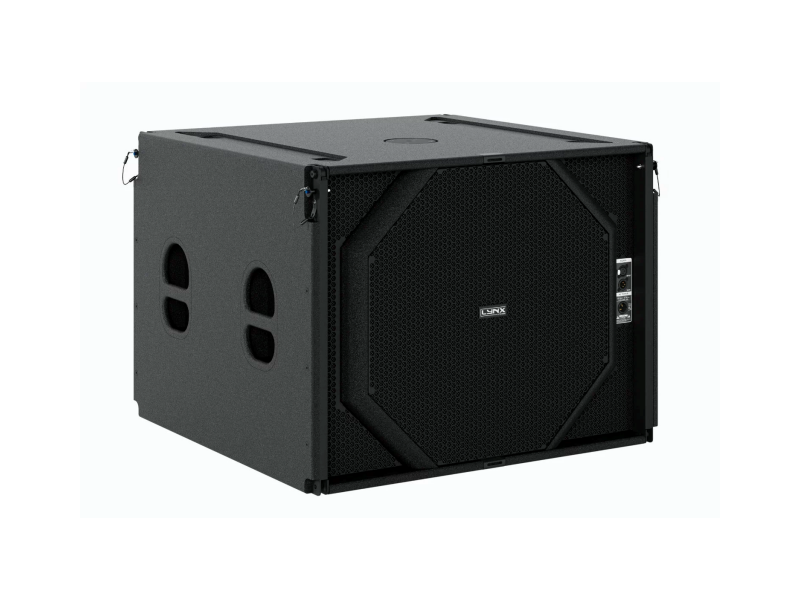

CLS-118SP 18-inch low-frequency speaker
CLS-121SP 21-inch low-frequency speaker
VMX88L Advanced Digital Audio Dynamic Processing Management System
The VMX88L offers the advantages and experience of our on-site sound filter and dynamic algorithms for fixed installation products. Each of the 8 analog input channels features an advanced compressor with an adjustable knee point, a 24dB/OCT high-pass filter, 8 selectable types of EQ, 2-stage dynamic equalization (DEQ), and adjustable delay of up to 1.3 seconds. The full matrix signal mixer allows analog inputs to be mixed to any output channel, providing flexibility in system design. All 8 analog outputs are equipped with 48dB/OCT high-pass and low-pass filters, 16 selectable types of EQ, adjustable delay of up to 1.3 seconds, and a state-of-the-art high-performance two-stage Predictive eXcursion Limiter (PXL) limiter design, aimed at providing optimal drive protection and minimal distortion. All analog audio interfaces use 3-pin 5.08mm pitch Phoenix connectors, with 4 GPI connections that allow customizable operational configurations (such as fire alarm mute and preset recall), and up to 30 presets can be stored and recalled, allowing for the selection of input, matrix, and output combinations. Our D-Net based Ethernet PC, Mac, and iPad control software not only allows you to control all devices on the network but also enables flexible storage of preset memories and system configurations (including in offline mode). The VMX88L is also fully compatible with our VR1 PoE remote control panel for simple and flexible user control, and can be controlled via simple Ethernet control protocols through third-party systems (such as Crestron, AMX, etc.).
VMX88 Advanced Digital Audio Dynamic Processing Management System (Dante)
The VMX88 provides the advantages and experience of our on-site sound filter and dynamic algorithms for fixed installation products. Each of the 8 analog input channels features an adjustable knee high-level compressor and a 24dB/OCT high-pass filter, 8 selectable types of EQ, 2-stage dynamic equalization (DEQ), and adjustable delay of up to 1.3 seconds. The full matrix signal mixer allows not only analog inputs but also the mixing of 8 Dante network audio input channels to any output channel, providing flexibility in system design by routing audio channels from multiple stages of the audio chain to the 8 channels of Dante network output. There are 8 analog outputs, each equipped with 48dB/OCT high-pass and low-pass filters, 16 selectable types of EQ, adjustable delay of up to 1.3 seconds, and a state-of-the-art high-performance two-stage Predictive eXcursion Limiter (PXL) limiter design, aimed at providing optimal drive protection and minimal distortion. All analog audio interfaces use 3-pin 5.08mm pitch Phoenix connectors, with 4 GPI connections that allow customizable operational configurations (such as fire alarm mute and preset recall), and up to 30 presets can be stored and recalled, allowing for the selection of input, matrix, and output combinations. Our D-Net based Ethernet control software for PC, Mac, and iPad not only allows you to control all devices on the network but also provides flexible storage of preset memories and system configurations (including in offline mode). The VMX88 is also fully compatible with our VR1 PoE remote control panel for simple and flexible user control, and can be controlled via simple Ethernet control protocols through third-party systems (such as Crestron, AMX, etc.).

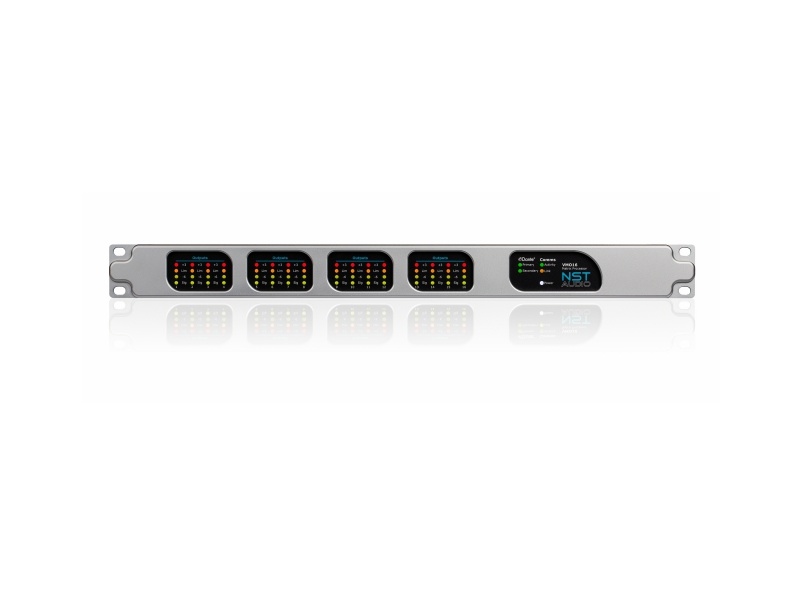

VMO16 16-channel output advanced digital audio processing management system (Dante)
The VMO16 provides the advantages and experience of our on-site sound filter and dynamic algorithms for fixed installation products, featuring a 16X16 channel matrix audio signal mixer. This allows any Dante audio signal from the Dante network input to be routed to any analog output channel, providing flexibility in system design. All 16 analog outputs are equipped with high-pass and low-pass filters with a maximum of 48dB/OCT, 16 selectable types of EQ, adjustable delay of up to 1.3 seconds, and a state-of-the-art high-performance two-stage Predictive eXcursion Limiter (PXL) design, aimed at providing optimal drive protection and minimal distortion. All analog audio interfaces use 3-pin 5.08mm pitch Phoenix connectors, with 4 GPI connections that allow customizable operational configurations (such as fire alarm mute and preset recall), and up to 30 presets can be stored and recalled, allowing for the selection of recall combinations for inputs, matrix, and output sections. Our D-Net based Ethernet control software for PC, Mac, and iPad not only allows you to control all devices on the network but also enables flexible storage of preset memories and system configurations (including in offline mode). The VMO16 is also fully compatible with our VR1 PoE remote control panel for simple and flexible user control, and can be controlled via simple Ethernet control protocols through third-party systems (such as Crestron, AMX, etc.).

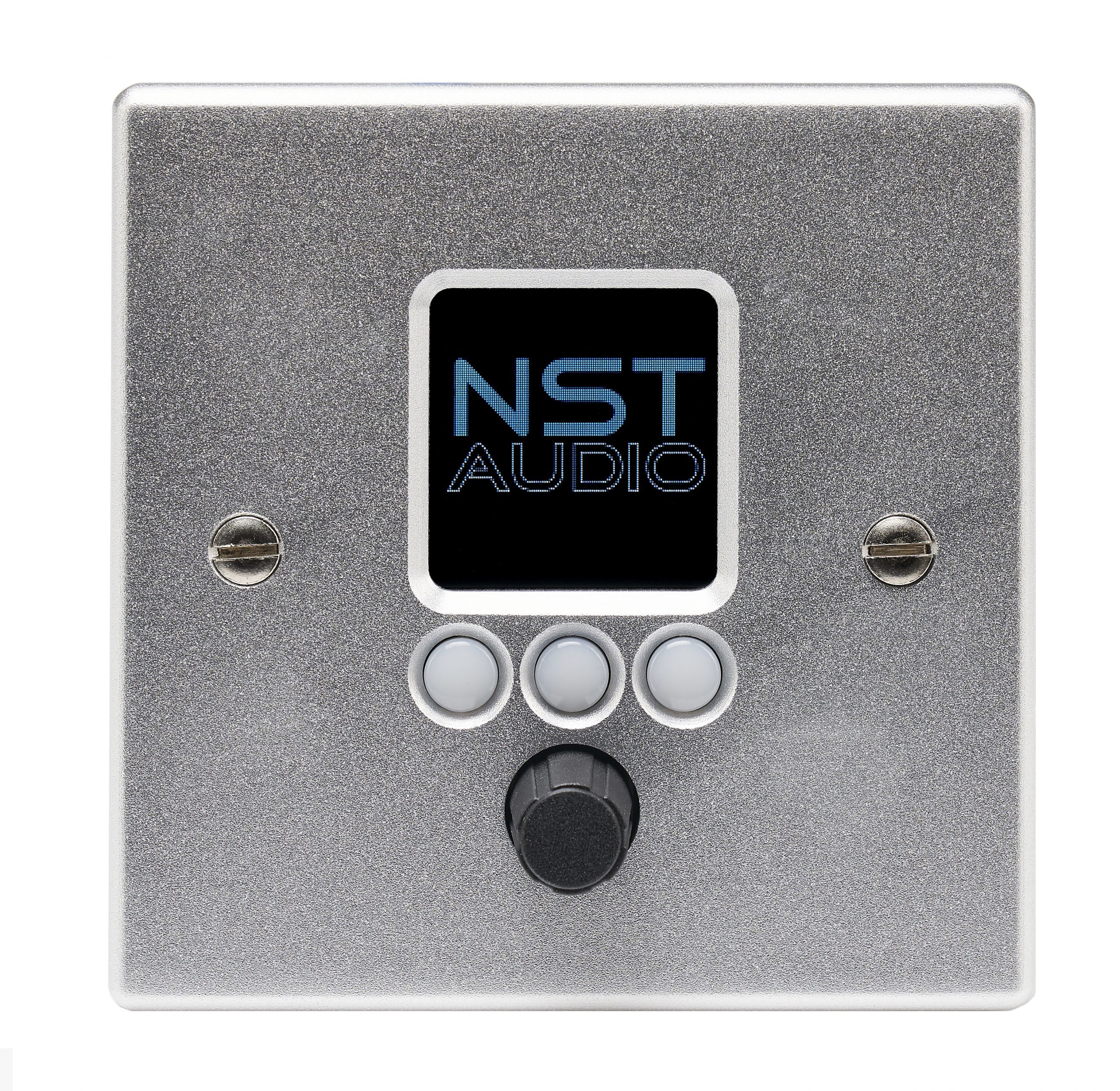

NET VR1 PoE Remote Control Panel
The VR1 wall panel remote control is designed for simple and intuitive remote control of specific parameters of any NST audio processor.
