KM310LE Card Bag Speaker
The KM310LE is a compact speaker system specifically designed for KTV applications, suitable for sound reinforcement in small KTV rooms and home entertainment systems. It consists of a long-stroke 10-inch bass driver and two 3-inch low-distortion paper cone tweeters, forming a two-way full-range speaker system. The precision-designed high-slope crossover minimizes frequency overlap while optimizing vocal reproduction. The 10-inch driver uses a long-fiber paper cone and foam surround, with a suspension system that exhibits excellent linearity and can withstand high power output. The tweeters are innovatively designed with a semi-open acoustic phase plug, inspired by JBL's legendary classic models, providing a wide and even sound field coverage. It also features mechanical filtering performance, resulting in clear and delicate sound quality. The KM310LE delivers a full and soft sound, meeting the demands for high-quality music playback, and can be paired with subwoofers for improved low-frequency response, making it suitable for various usage scenarios.
- Product Application: ◇ KTV sound reinforcement application ◇ Home entertainment system ◇ Matching ultra-low frequency speakers
- Product Description
-
Main Features:
● 10-inch high-power long-stroke bass driver
● 3-inch high-efficiency low-distortion paper cone tweeter
● The tweeter is mounted under a semi-open acoustic phase plug, providing very uniform sound field coverage
● The cabinet is made of high-quality medium-density fiberboard, with a black wear-resistant spray paint finish
● Precision-designed crossover, optimizing power distribution and vocal performance
Specifications:
System
System Type: 10" 2-way, bass reflex
Frequency Range (-10dB)1:
52Hz-18kHz
Frequency Response (-3dB)1:
65Hz-14kHz
Sensitivity (1w/1m)1:
90dB
Rated Impedance:
8 ohms
Maximum Sound Pressure Output:
113dB (Peak 116dB)
Coverage Angle:
130°x100°(HxV)
Rated Input Power2: (Rated/Music Signal/Peak)
200W/400W/800W
Dimensions
Dimensions (H*W*D) :
297mm x 504mm x 308mm 11.7" x 19.8" x 12.1"
Net Weight:
12kg (26.5 lbs)
Bass Driver:
1 x 10-inch long-stroke bass
Tweeter:
2 x 3-inch paper cone tweeter
Input Connector:
Knob-type terminal
Cabinet Structure:
15mm and 12mm medium-density fiberboard, surface wear-resistant spray paint
1. Measured under full space (4π) conditions
2. IEC standard, tested with pink noise at a peak factor of 6dB for 100 hours within the effective frequency rangeJBL is continuously committed to product improvement research. JBL will apply new materials, new production methods, and new design improvements to existing products without prior notice. Therefore, any current JBL product will differ to some extent from previously released products. Unless otherwise specified, these products still meet or exceed the specifications of the original design.

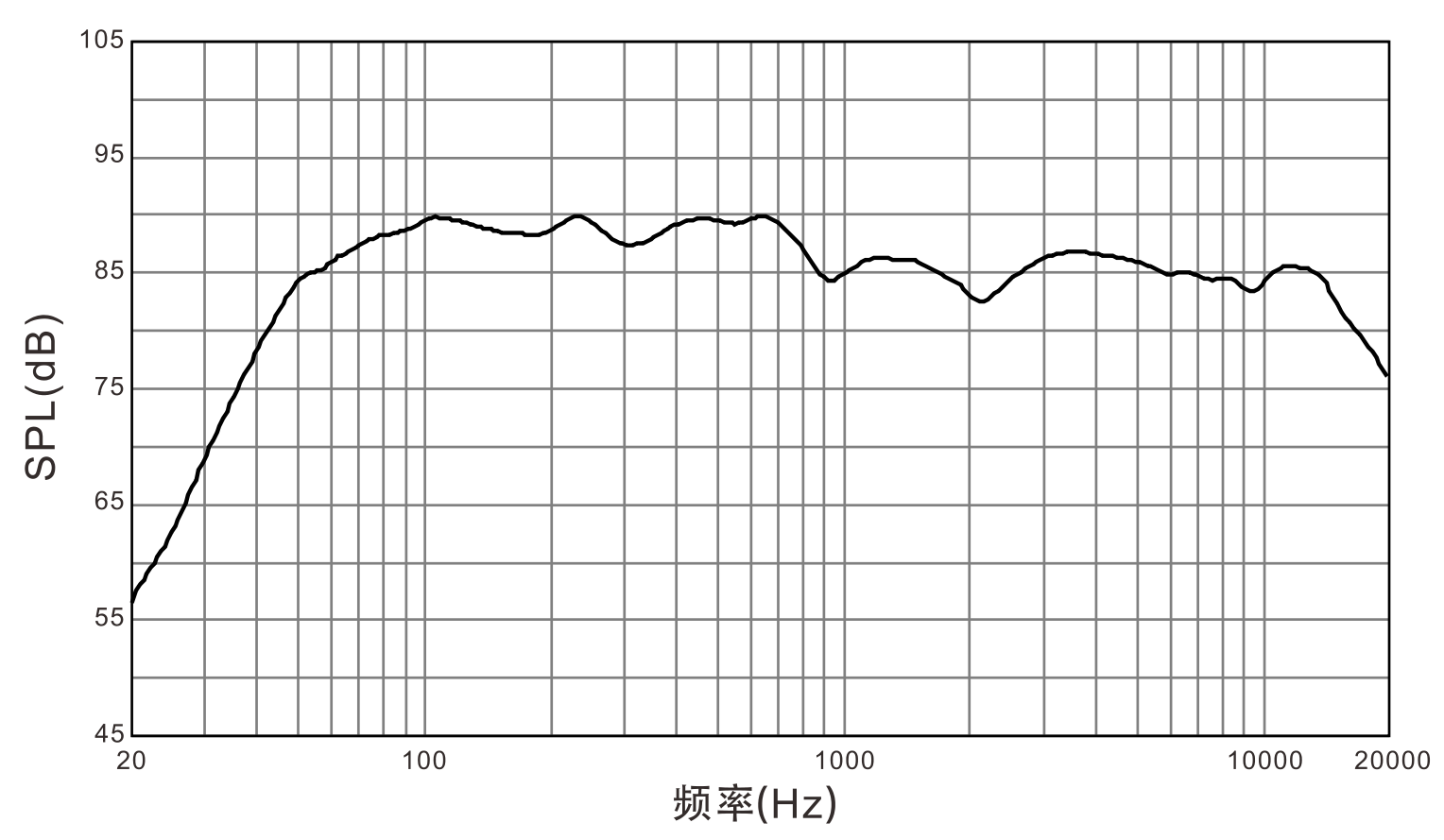

Frequency Response and Impedance Curve:

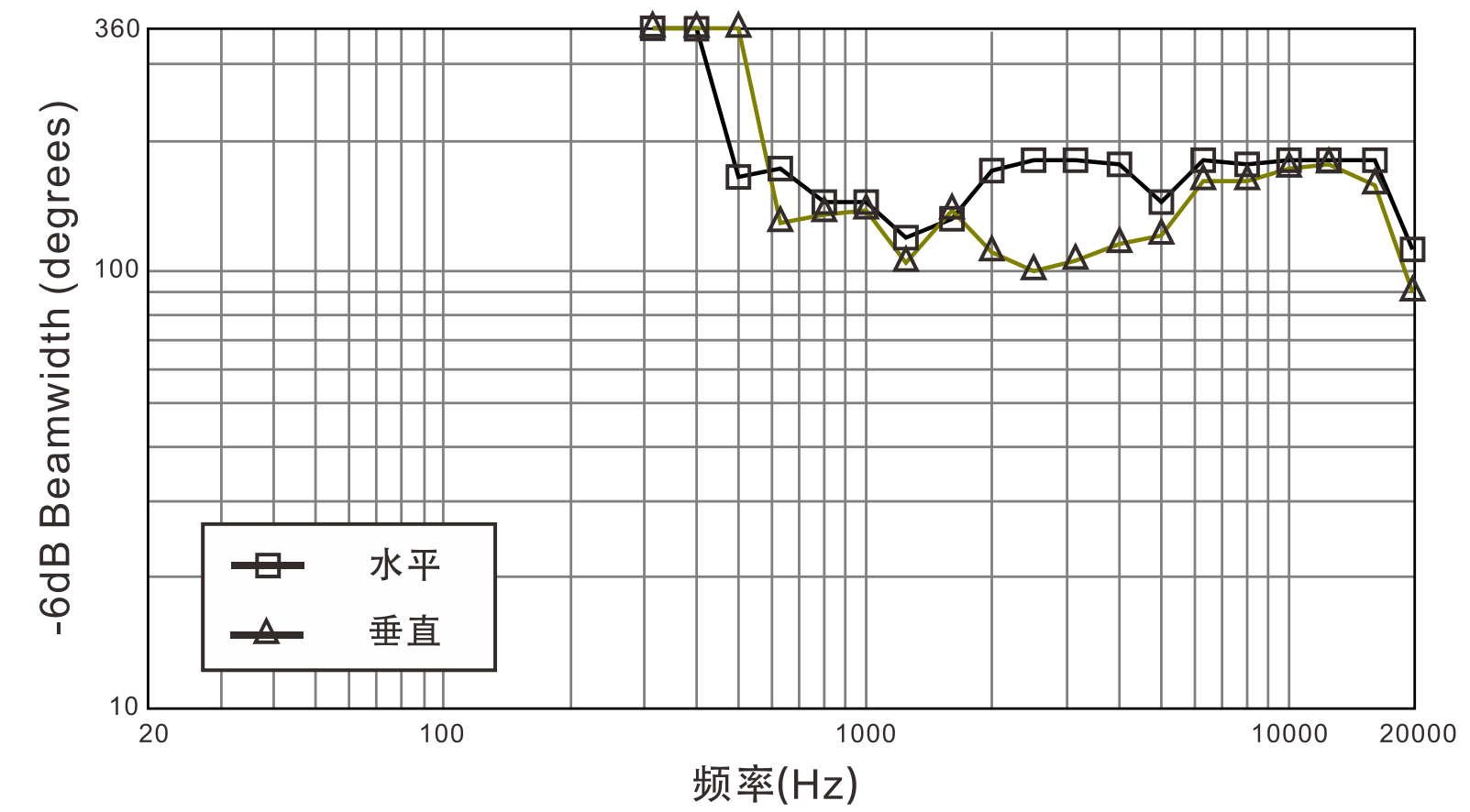

Coverage Range:
Dimensions:
